Multibody Joints and IK

Godot Rapier has Impulse Joints, which use Constraints-based approach.

It also has Multibody Joints, which use the Reduced Coordinates Approach. They are more stable but slower and can be used for IK. Multibody joints are a chain of multiple joints that are continuously connected, and use the Rapier Extension Classes.

"WHICH APPROACH SHOULD I USE?"

The choice of approach depends on the application. For robotics, the reduced-coordinates approach is generally preferred because of its accuracy and ease of use, e.g., for control, inverse kinematics, etc.

Inverse Kinematics​

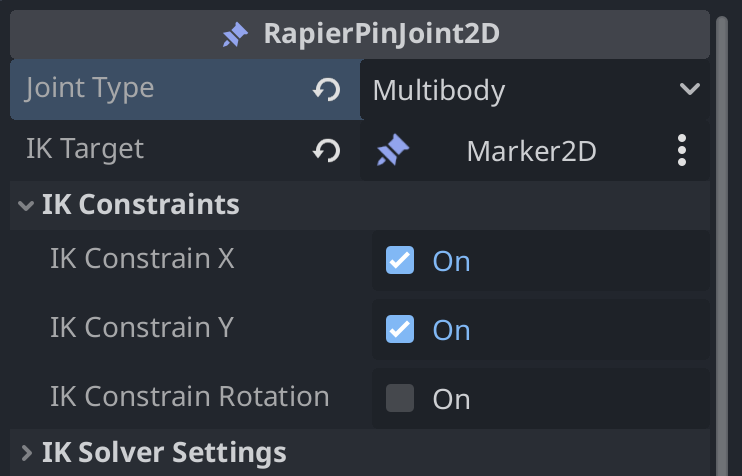

The multibody joints support IK target nodes. In order to use it, create a Rapier Extension Class of the node you want to use (eg. RapierPinJoint2D) and select joint_type to Multibody:

multibody

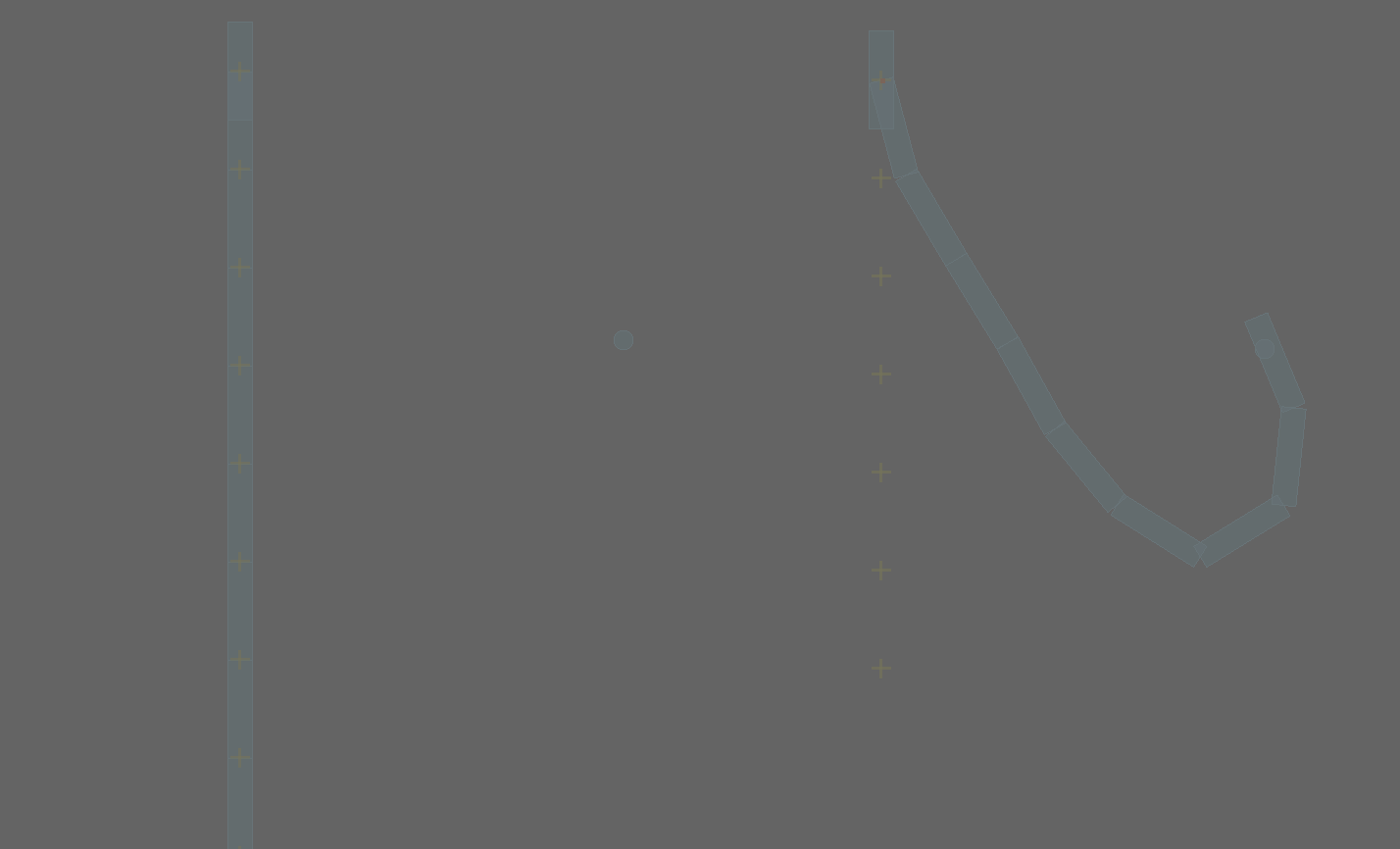

Now, the whole chain structure will follow the ik_target:

ik

When setting a multibody joint, the rigidbodies need to not collide with each other and be massless.

Motor position targets​

Rapier's motors can drive a joint to a target velocity or a target position. Godot only exposes velocity targets; RapierPinJoint2D and RapierHingeJoint3D add position targets, which act like a spring towards an angle in radians.

inspector properties

Every joint node and its properties is listed in the Class Reference.
